High Pallet Gate with Edge Protection




Pallet gates are the safest and most ideal solution for companies who require pallet loading, and therefore they are especially ideal for mezzanine floors where pallets are distributed to various levels.
Our pallet gates guarantee optimum operator safety through ensuring that one side is always closed through an axis principle system.

  • The unit comes flat packed
  • Easy Assembly
  • Maximum┬áPallet Dims : 1500mm Wide, 1700mm Deep, 2300mm High.
  • Strong Welded Construction
  • Orange Powder Coated Finish

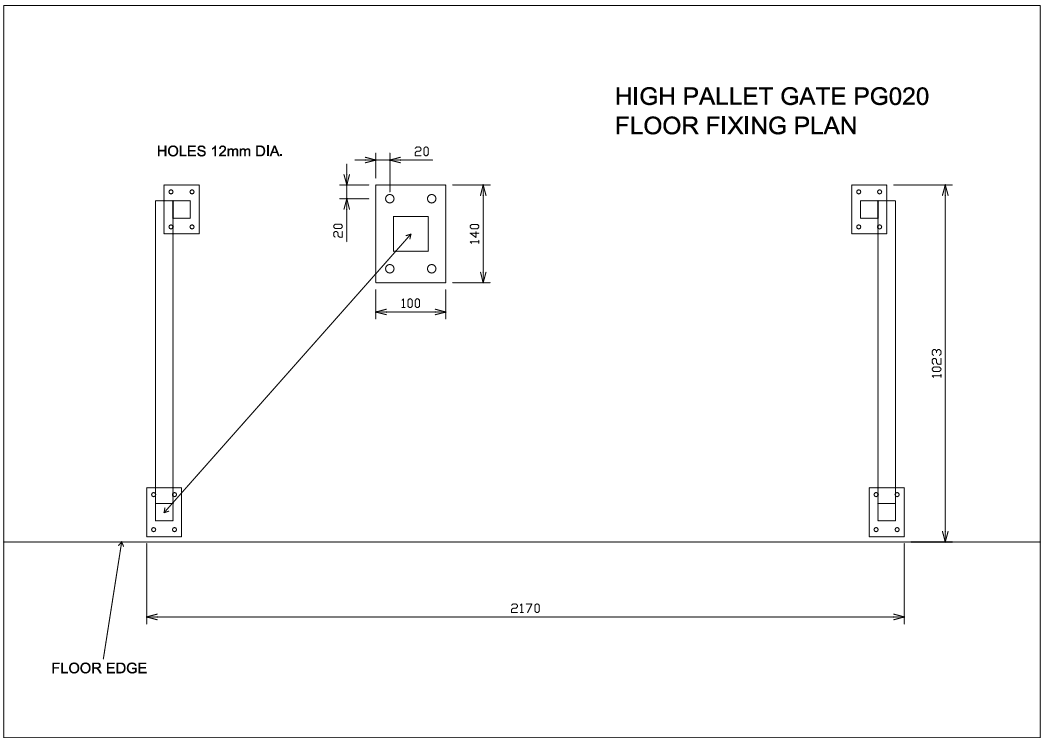

  • Supplied with floor fixings.

EDGE PROTECTION for the edge of mezzanine floors.
To be used in Pallet gates to prevent wear and tear from the loading and unloading of pallets.

Dimensions (mm): 1500 (W) x 550 (D) x 200mm Downturn on front edge
Material: Aluminium


Delivery Lead Time – Generally stocked and pre-packed at our warehouse, Leeds, West Yorkshire.

PLEASE NOTE: Delivery of this item is on a pallet, and will require a forklift to unload at delivery destination.

We also offer installation with Transformer Systems, call us on the number above or e-mail info@transformersystems.co.uk for a quote.

Additional information

Dimensions 1905 × 2170 × 3000 mm
Overall Dimensions (mm):

2170 (W) x 1905 (D) x 3000 (H)

Overall Gate Height:


Clear Entry Width (mm):


Minimum Headroom (mm):

3000mm Overall
2550mm at Edge

Maximum Pallet Dimensions (mm):

1700 (W) x 1500 (D) x 2300mm (H)

Frame Outside Diametre (mm):

50mm O/D tubing

Gate Footprint (mm):

2170 (W) x 1905mm (D)


Pivot/Swing Gate


RAL 2004 Alert Orange

Install Time:

2 hours
